MD-70ZH
Food Carton Packaging Machine
Machine Capabilities
--Capacity: 5-20 bags/min
--Inner Pack: 5 to 10 Packets
--Box types: Tuck End Carton、Glue-Sealed
Custom Solution Supported
--Capacity: 5-20 bags/min
--Inner Pack: 5 to 10 Packets
--Box types: Tuck End Carton、Glue-Sealed
Custom Solution Supported
Quantity:
| Model | MD-70ZH | |
| Capacity | 5~30 box/minute (decided by the speed of coffee bags supplying) | |
| Carton Quality Requirements | 250~350 g/㎡ (depend on the size of the carton) | |
| Box Size(L×W×H) | (70~210 )* (35~120) * (14~120) mm(should be rechecked as actual coffee box size) | |
| Insert Papers (optional device with extra cost) | Quality Requirements | 60-70 g/㎡ |
| Unfolded Size Range（L×W） | (80~250) * (90~170) mm | |
| Folded Size Range | 1~4 folded | |

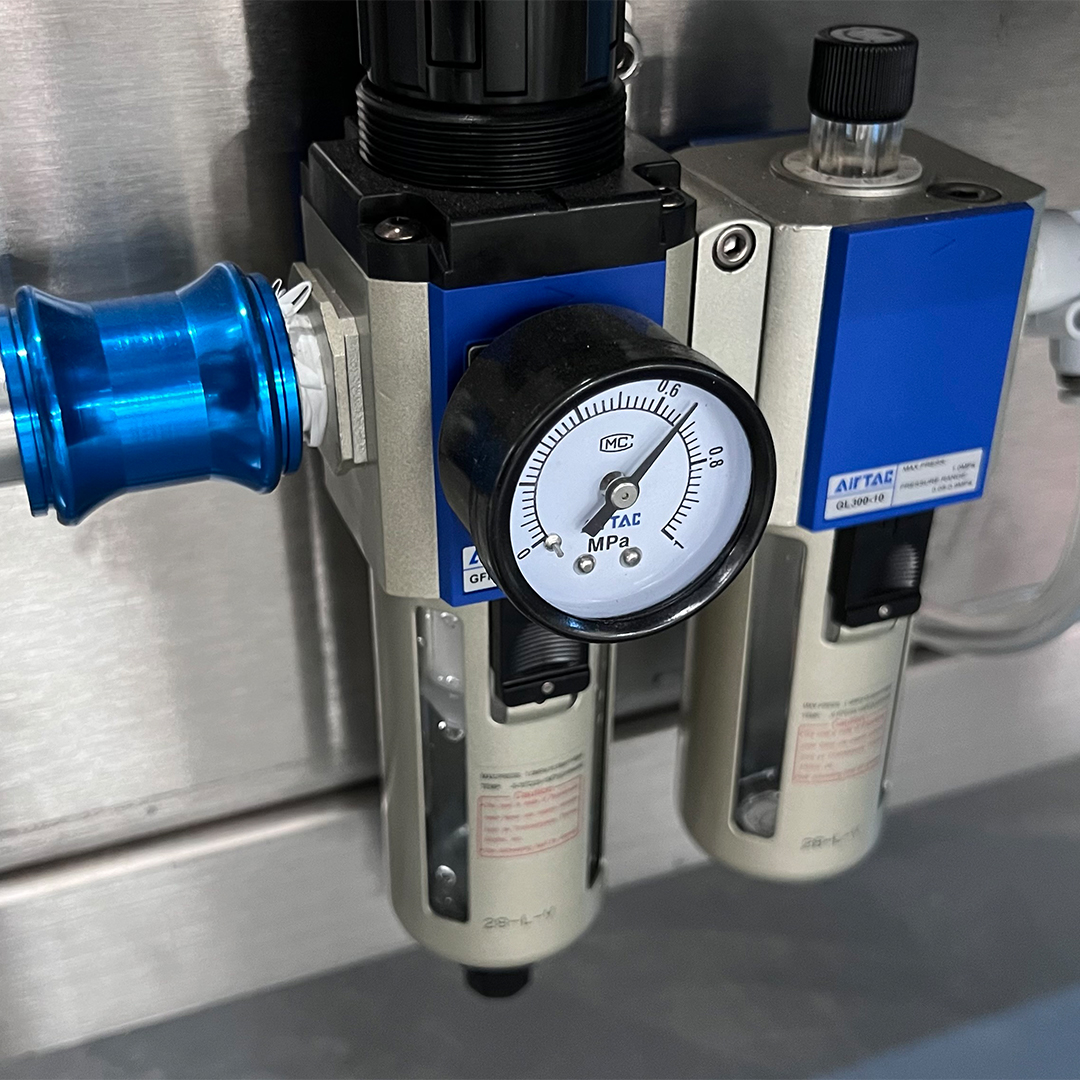

| Working Pressure | ≥0.6mpa | |
| Air Consumption | 120~160 L/min | |
| Power Supply | 220V /380V 50HZ | |
| Main Motor Power | 1.5kw | |
| Main Machine Size (L×W×H) | About 2500 * 1500 * 1850 mm | |
| Weight | About 1800 kg | |
