MD-230Y

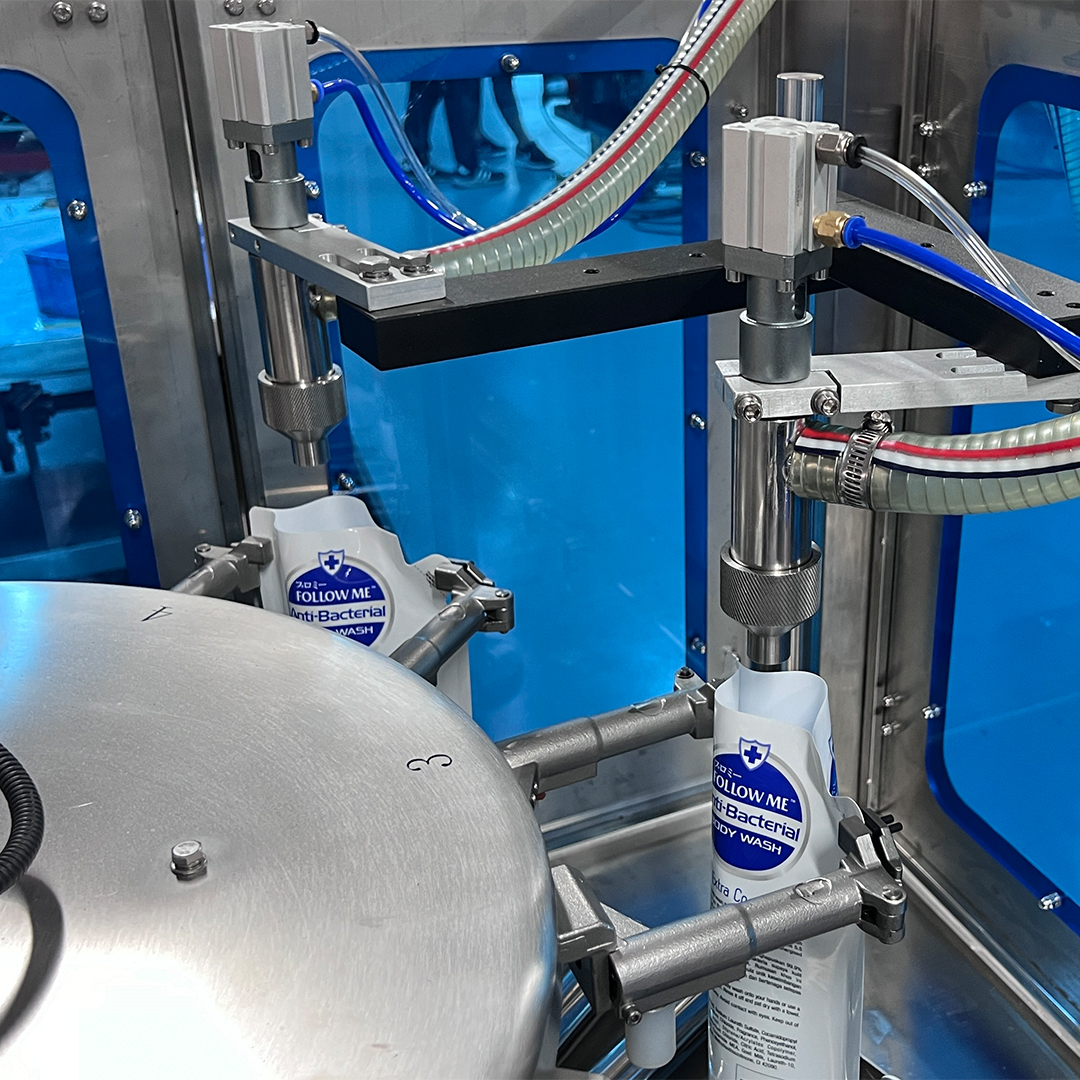

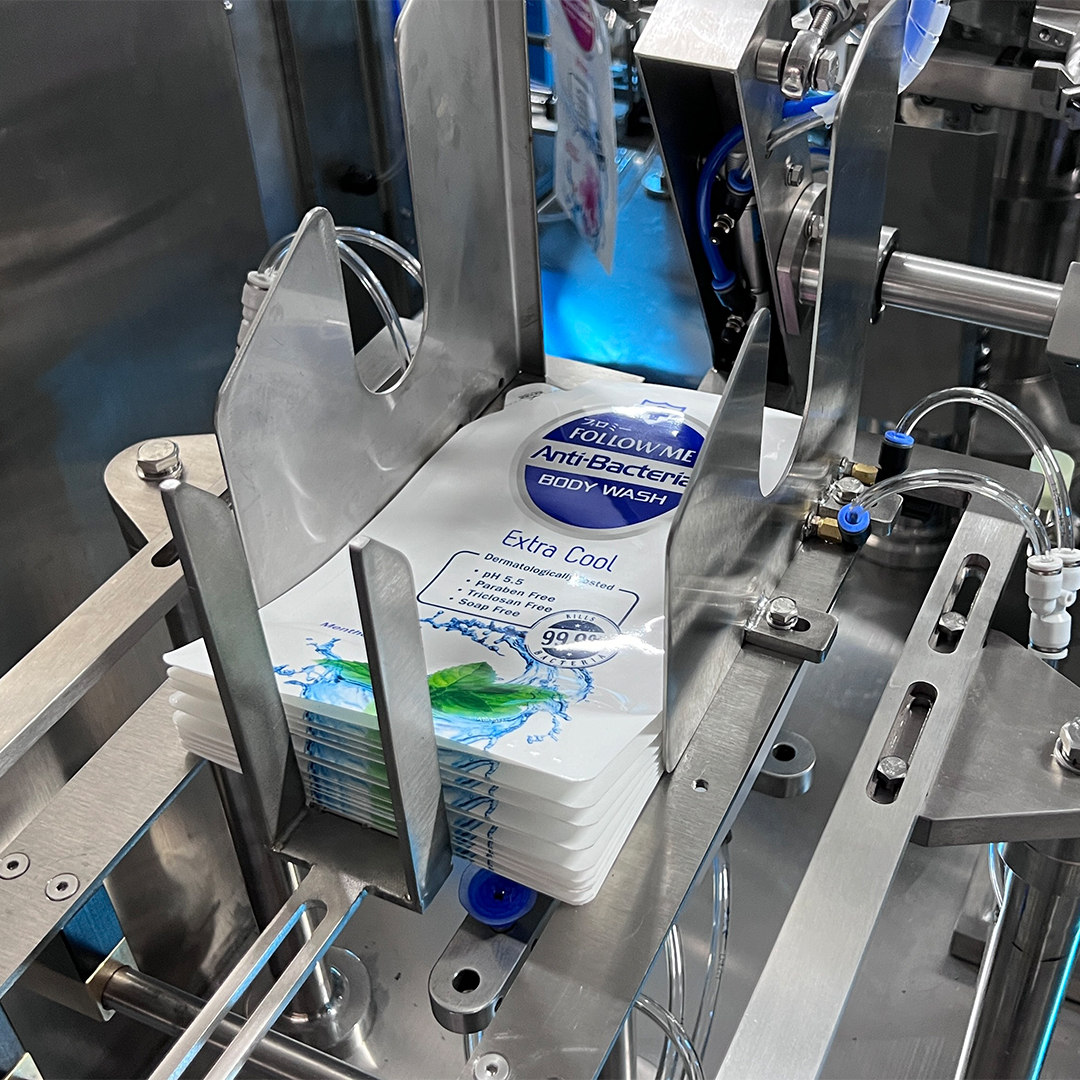

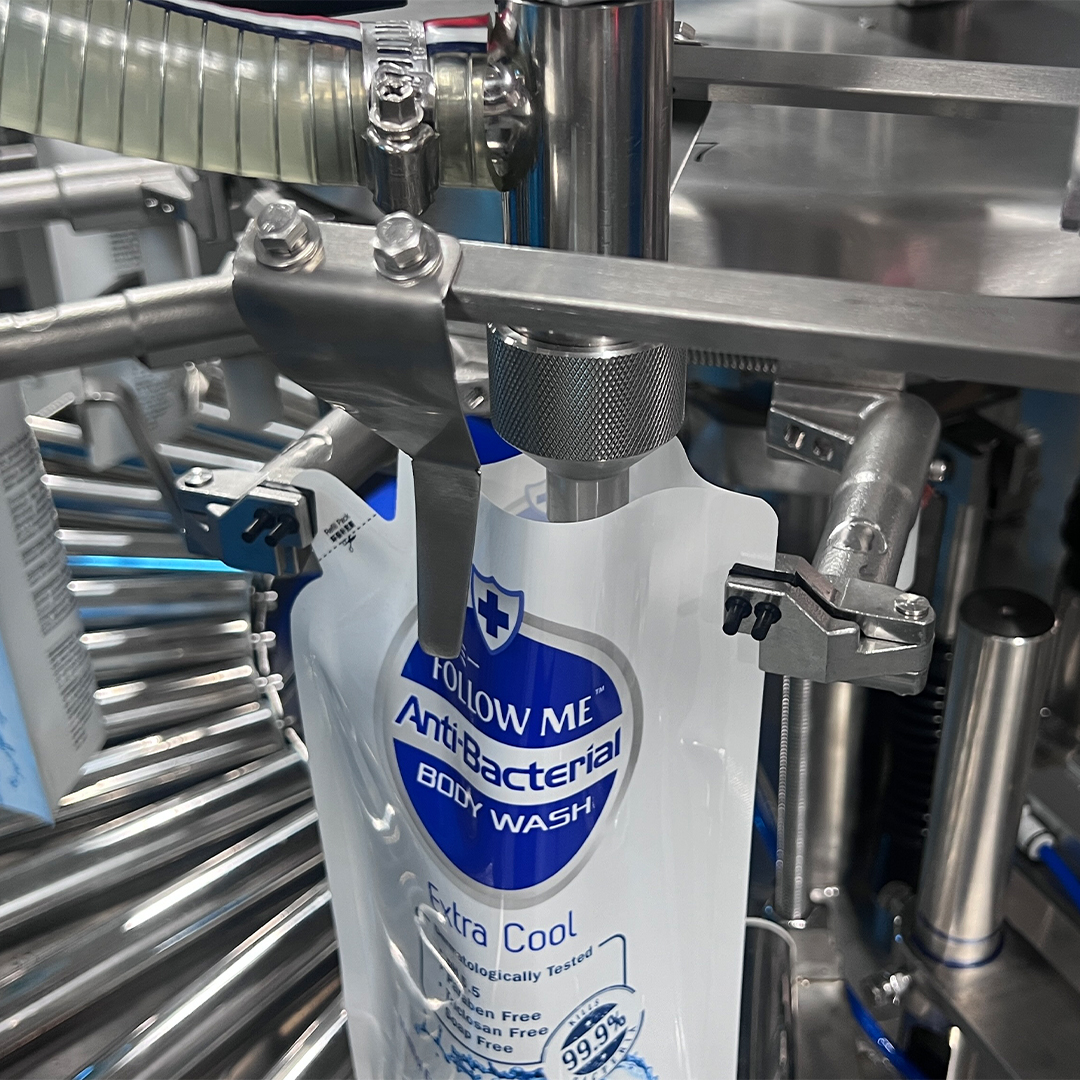

Premade Pouch Liquid and Sauce Packaging Machine
Machine Capabilities
--Capacity: Up To 60 bags/min
--Packing Range: 10-2500g
--Materials: Olive oil、 Sesame oil、Hot pot soup base、Laundry detergent
--Bag types: Stand-up bag, 3/4-side sealing bag, zipper bag, paper bag...
Custom solution supported
--Capacity: Up To 60 bags/min
--Packing Range: 10-2500g
--Materials: Olive oil、 Sesame oil、Hot pot soup base、Laundry detergent
--Bag types: Stand-up bag, 3/4-side sealing bag, zipper bag, paper bag...
Custom solution supported
Quantity:
| Model | MD-230Y |
|---|---|
| working station | 8 station |
| Packing speed | 25-45 bags/minute (The speed is determined by the product itself and filling weight) |
| Filling range | 10g～2500g |
| Bag size | Bag width：80～220mm Bag length：100～350mm |
| Bag type | Stand-up bags, handbags, 3/4-side sealing bags, zipper bags, spout bags and other |
| Noise decibels | ≤70decibel |
| Sealing method | Straight+Mesh |
| Machine weight | 1400KG |
| Power supply | 380V 50HZ 9.8KW |
| Compressed air consumption | ≥0.6 cubic meters/minute (compressed air is provided by the user) |
| Dimension | 2170×1540×1430mm |
| Material | Exposed and material contact parts are all 304 stainless steel; Transmission and support frame all steel. |
